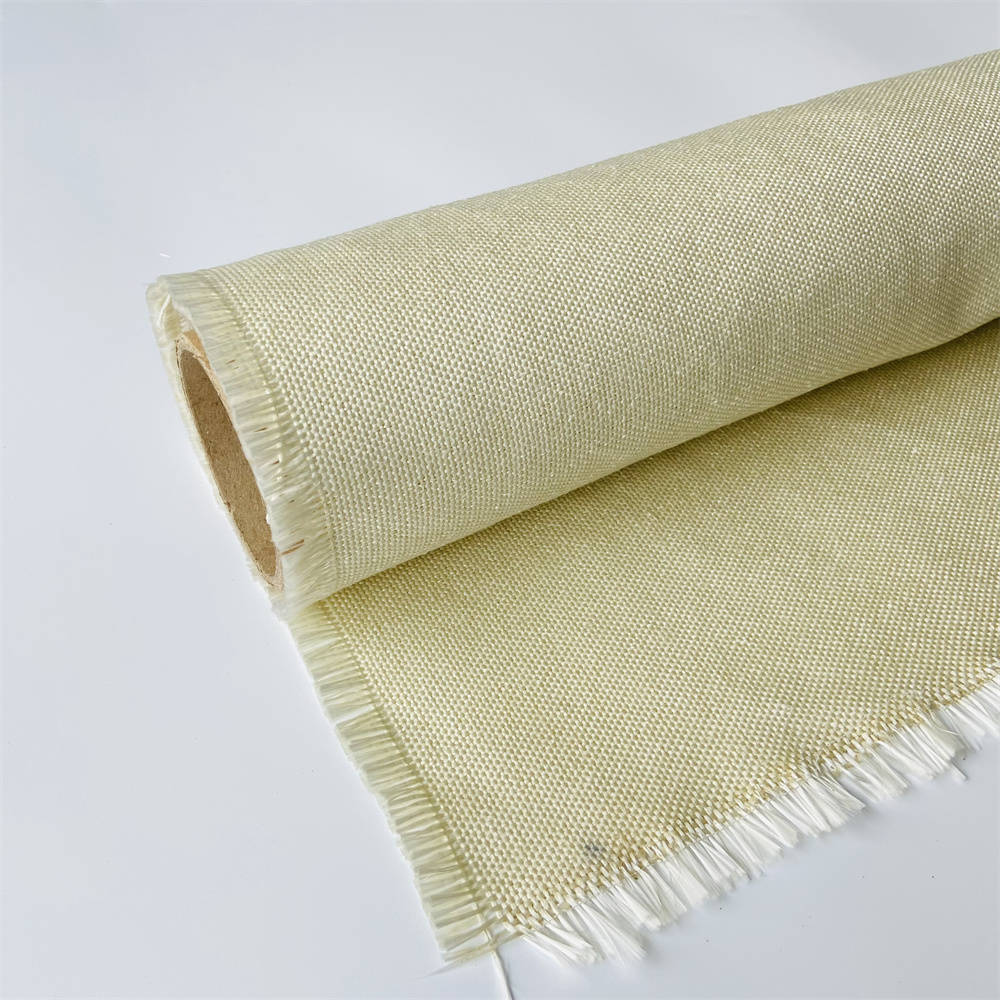

Vermiculite Coated Fiberglass Fabric

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button


Fiberglass cloth coated with vermiculite has a high temperature resistance reaching up to 1000oC, which means it can withstand direct flame. This makes it ideal for applications in blast furnaces and in the metallurgical industry. It also is a good thermal insulator.


Surface TreatmentVermiculite
Coating Side2 sides
ColorWhite, Brown
Thickness0.2mm - 3mm
Weight230gsm - 2800gsm or 6.8oz/yd² - 82oz/yd²
Width0.8m - 2m or customized
Temperature Standing800ºC (1472ºF)
Length per RollCustomized
Base Cloth

Heat treated fiberglass cloth, texurized fiberglass cloth, high silica cloth, steel wire reinforced Texturized fiberglass cloth


Product Properties

1. High-Temp resistance

2. Fire resistance

3. Excellent abrasion resistance

4. Excellent tensile strength

5. Good chemical resistance


Applications

Welding blanket, Expansion joints, Heat Shield, Removable insulation cover, flexible compansator etc...


Related Products

Product No.

Yarn Type

Coating

Thickness

Weight

mm

g/m²

oz / yd²

VEC020202

Filament

2 sides

0.2

230.0

6.8

VET075302

Texturized

2 sides

0.75

630.0

18.6

VET080502

Texturized

2 sides

0.8

870.0

25.7

VET100702

Texturized

2 sides

1

1020.0

30.1

VET120702

Texturized

2 sides

1.2

1070.0

31.6

VET150802

Texturized

2 sides

1.5

1280.0

37.8

VET2001002

Texturized

2 sides

2

1600.0

47.2

VET2501202

Texturized

2 sides

2.5

1920.0

56.6

VET3001502

Texturized

2 sides

3

2450.0

72.3

VES070202

High Silica

2 sides

0.7

630.0

18.6

VES100302

High Silica

2 sides

1

910.0

26.8

VES125502

High Silica

2 sides

1.25

1150.0

33.9
