AL-foil Laminated Fiberglass Fabric

Quantity:
Availability:





Inquire Add to Basket

Product Description

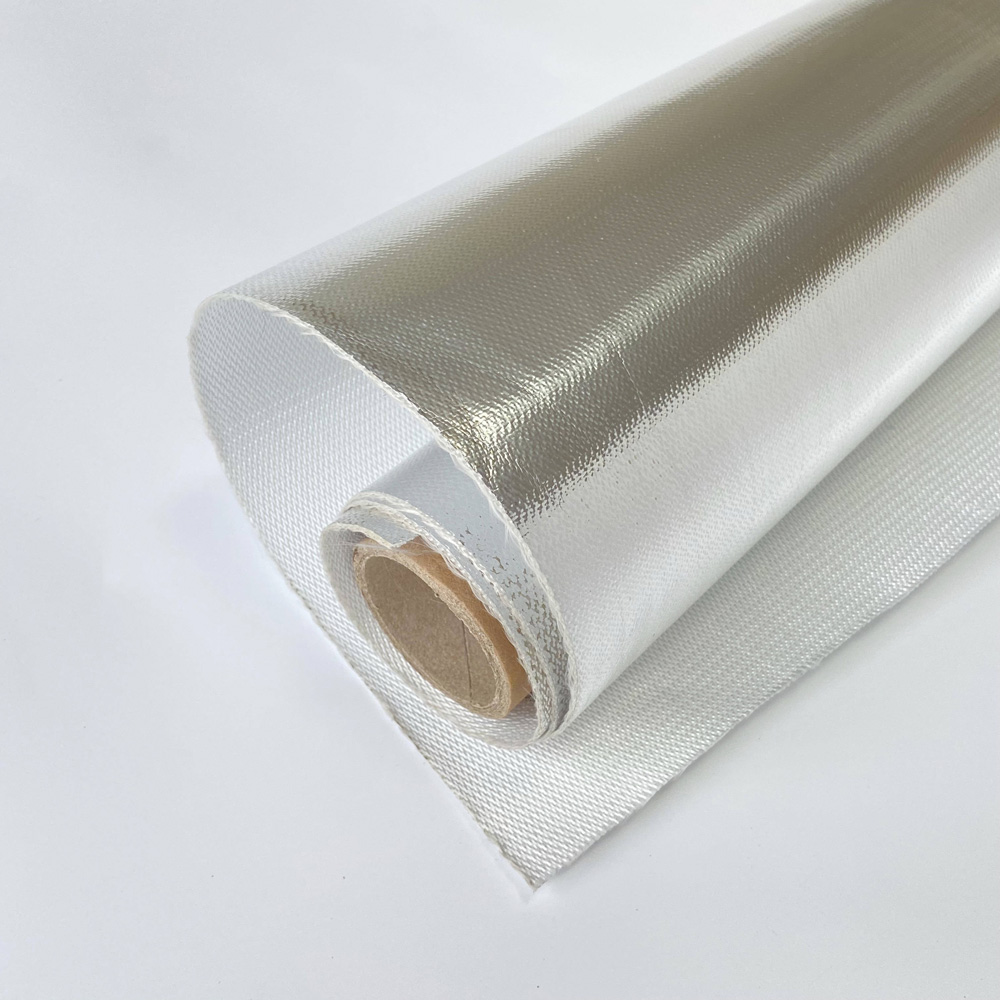

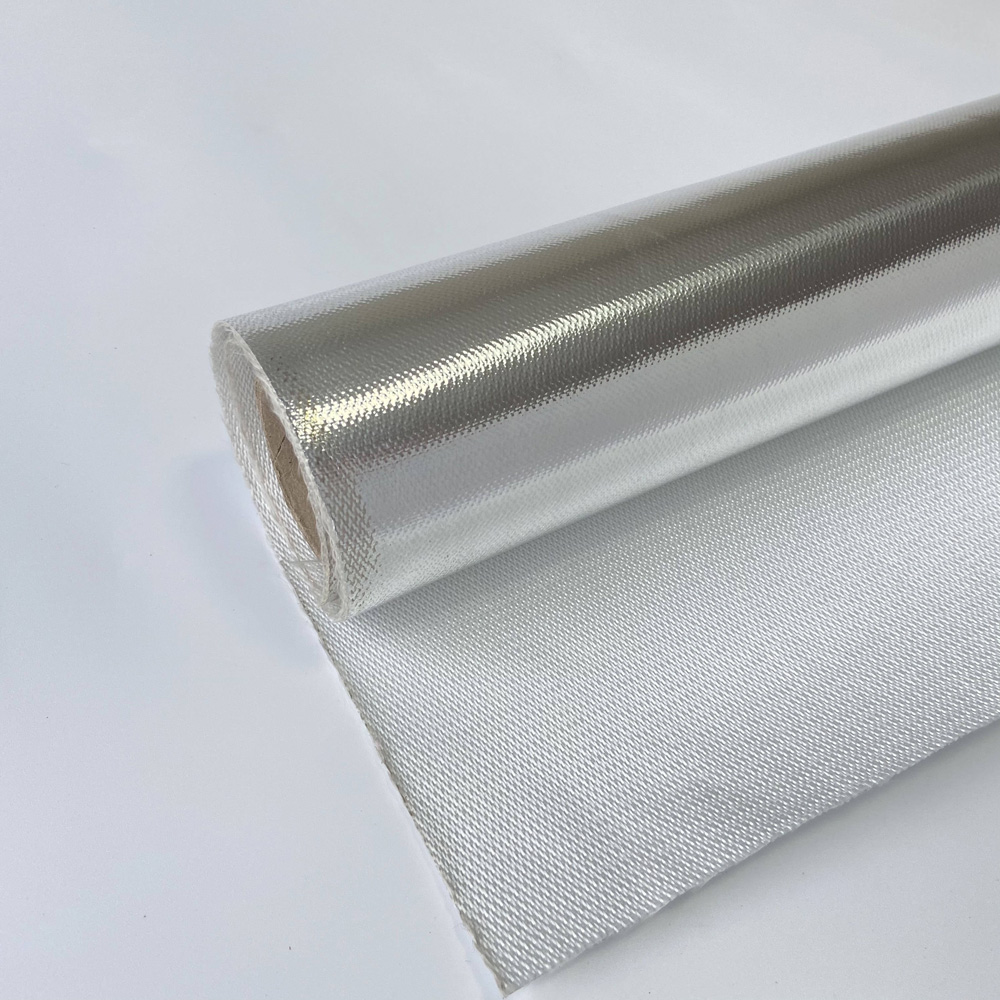

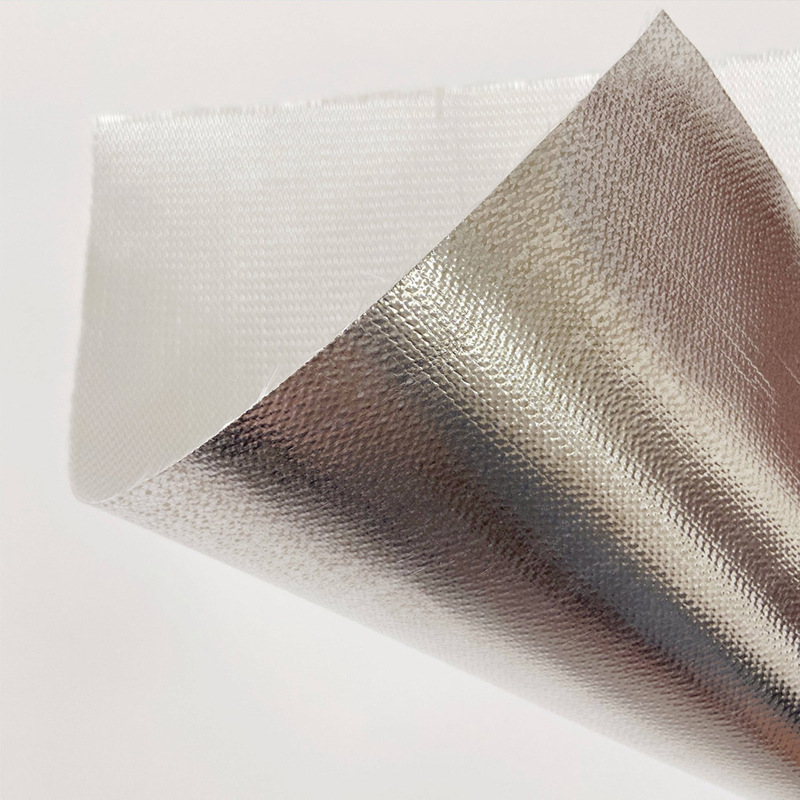

Aluminum foil laminated fiberglass cloth is made of fiberglass fabrics laminated in an aluminum foil or film. It has many good features such as high tensile strength, good sealing capability, gas-proofing and waterproofing. These properties make it ideal for applications such as heat retardant curtain, thermal insulation cover, welding protection, fire protection etc.

Thickness	0.2mm-2mm
Weight	210g/m²(6.2oz/yd²) - 1500g/m²(44.2oz/yd²)
Color	Silver
Width	0.8m - 2m or customized
Temperature Standing	-70ºC(-94ºF) - 550ºC(1022ºF)
Length per Roll	50m, 100m,200m or Customized

Product Properties

Fire resistance
High tensile strength
High heat resistance
Aging resistance
Waterproof
Good abrasion resistance

Applications

Base materials for coating, welding blanket, fire curtain, expansion joints, Non-metallic compensator, insulation jacket, fire proof mat, anti-corrosion sector, flange spray shields, high-temperature gaskets and seals etc...

Related Products

Product No.	Yarn Type	Thickness		Weight
Product No.	Yarn Type	cloth（mm）	Al Foil（μm）	g/m²	oz / yd²
ALE020	E-Glass	0.2	7/18/25/38/50	210	6.2
ALE035	E-Glass	0.35	7/18/25/38/50	400	11.8
ALE040	E-Glass	0.4	7/18/25/38/50	430	12.7
ALE060	E-Glass	0.6	7/18/25/38/50	660	19.5
ALE080	E-Glass	0.8	7/18/25/38/50	840	24.8
ALE110	E-Glass	1.1	7/18/25/38/50	1300	38.3
ALE150	E-Glass	1.5	7/18/25/38/50	1600	47.2
ALT038	Texturized	0.38	7/18/25/38/50	280	8.3
ALT075	Texturized	0.75	7/18/25/38/50	600	17.7
ALT24	Texturized	0.8	7/18/25/38/50	820	24.2
ALT30	Texturized	1	7/18/25/38/50	1000	29.5
ALT35	Texturized	1.5	7/18/25/38/50	1200	35.4
ALT44	Texturized	2	7/18/25/38/50	1500	44.2
