Product Name:

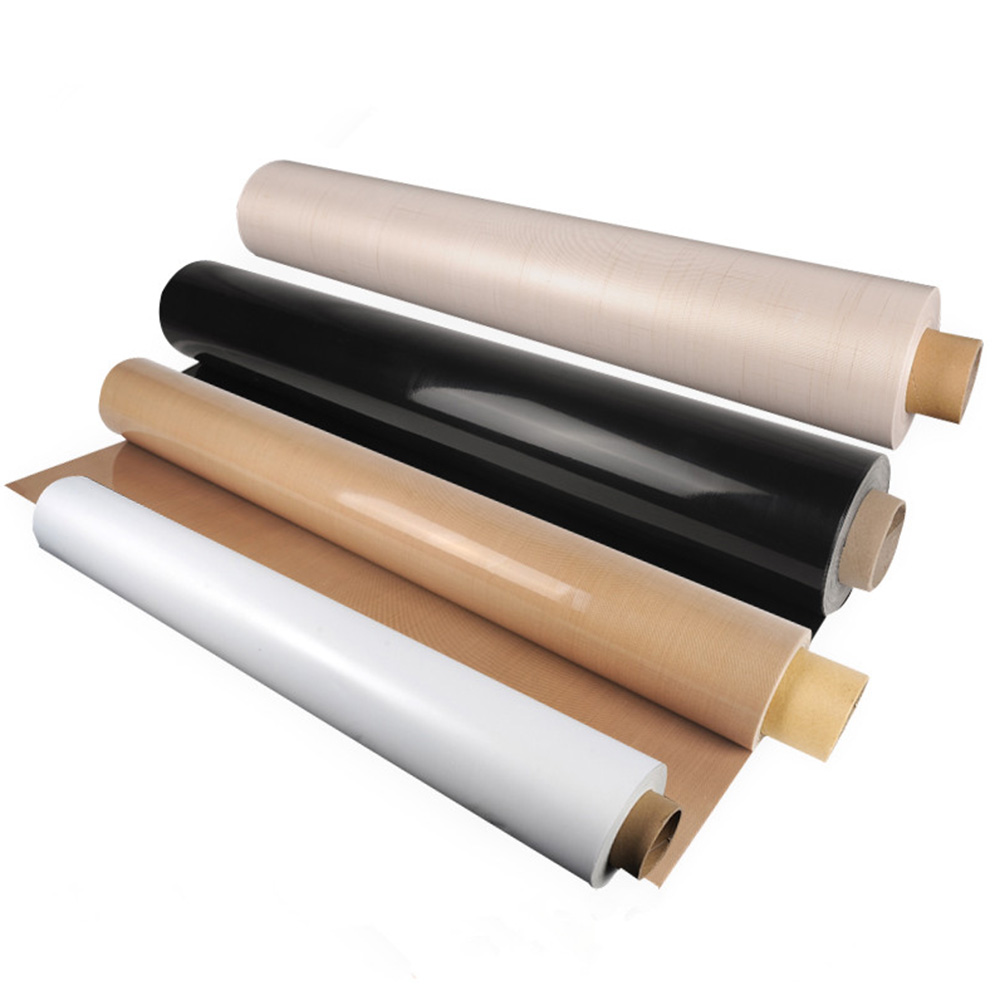

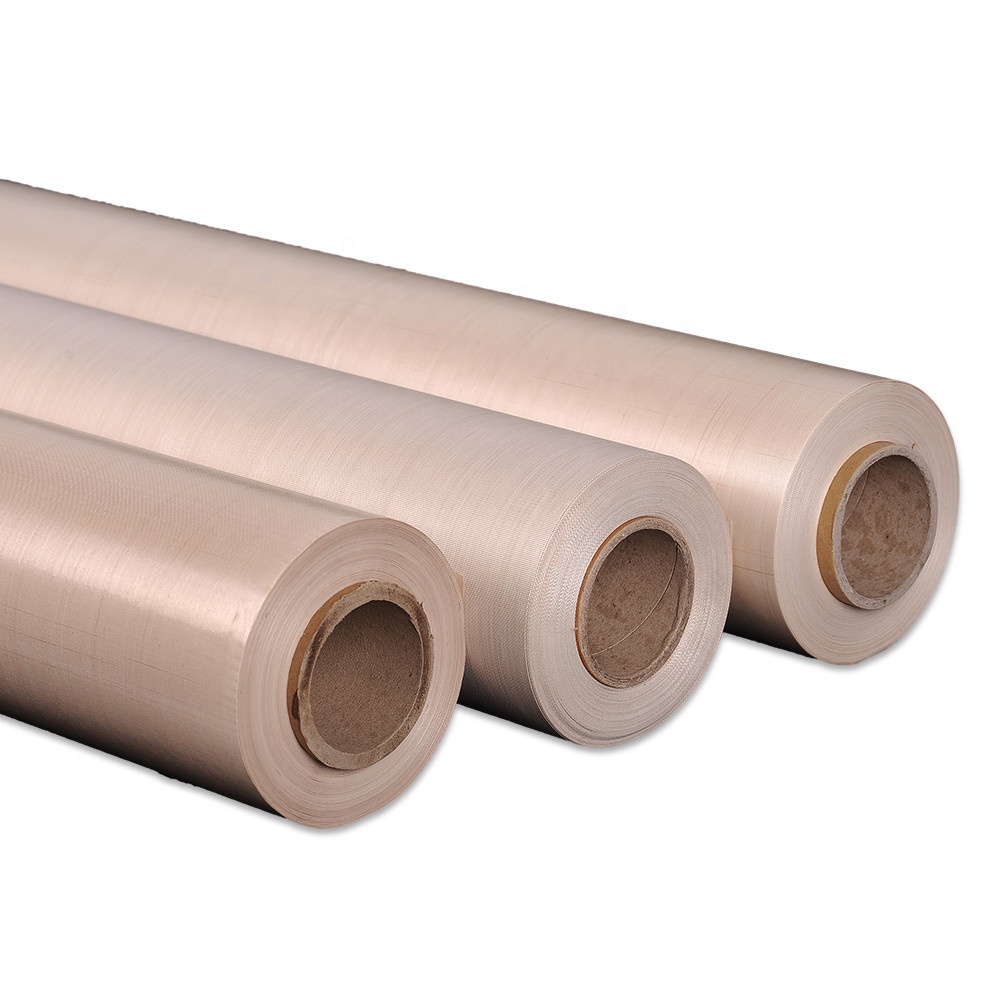

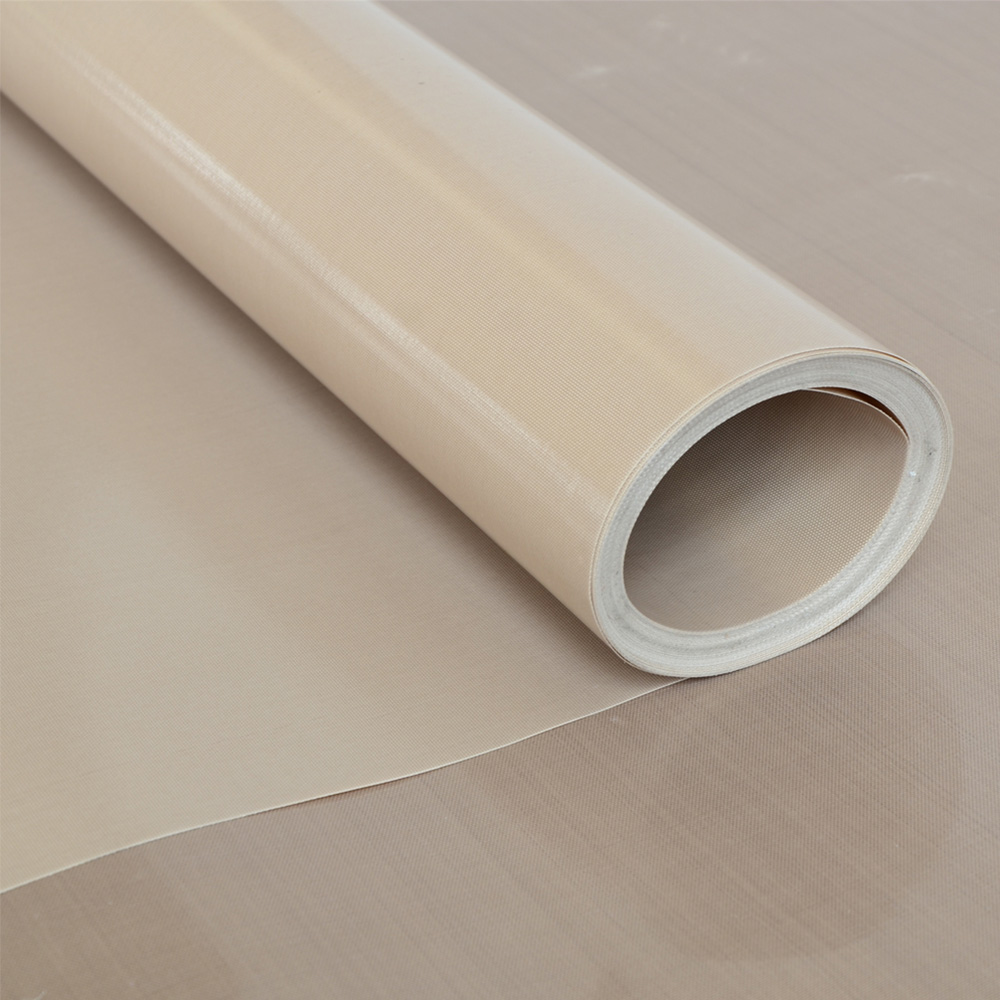

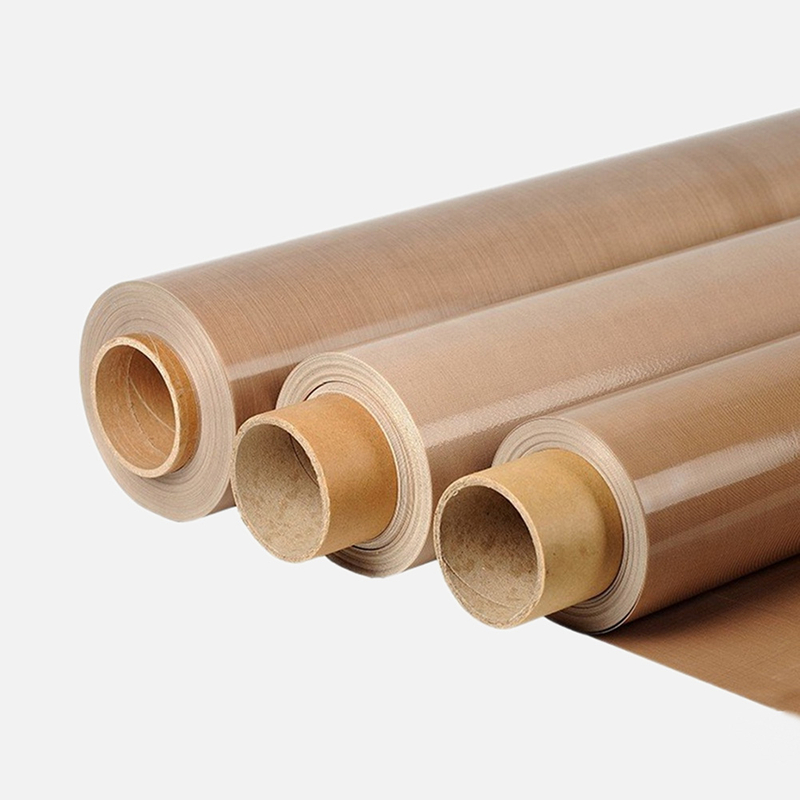

Non stick flame retardant thermal insulation PTFE teflon fabric High Temperature resistant Fiberglass cloth for conveyor belt


Brand NameNew Fire
Surface TreatmentPTFE
ColorWhite, Beige, Brown, Black
Thickness0.08mm-1mm or customized
Weight140gsm - 2000gsm or 4oz / yd² - 60oz / yd²
Width1.25m - 3m or customized
Temperature Standing-70ºC - 260ºC
Length per RollCustomized


Product Properties:

1. High temperature resistance, its 24 hours temperature resistance is 260ºC, maximum upto to more than 300ºC.

2. Non-stick surface, easy to clean.

3. Chemical resistance, anti corrosion

4.  Flame retardant



Applications:

PTFE fabric (Teflon fabric) could be used as various of liners to resist high temperature, such as microwave liner, oven liner, or other liners. used as non stick liners, intermediate. used as various conveyor belts, fusing belts, sealing belts or anywhere need resisting high temperature, non stick, chemical resistance etc. used as covering or wrapping material in petroleum, chemical industries, as wrapping material, insulating material, high temperature resistance material in electrical industries, desulfurizing material in power plant etc.


Related Products:

Item No.

Nominal Thickness

Maximum Width

Nominal Weight

Tensile strength

Temperature resistance

Color

MM

MM

GSM

OZ / YD²

N/5CM

ºC

TF008AJ

0.08

1250

150

4.4

550/450

-70-260

Brown

TF008BJ

0.08

1250

150

4.4

550/450

-70-260

Black

TF008W

0.08

1250

140

4.1

550/450

-70-260

White

TF013AJ

0.13

1500mm

250

7.4

1100/1000

-70-260

Brown

TF013BJ

0.13

1250mm

250

7.4

1100/1000

-70-260

Black

TF013J

0.13

1250mm

250

7.4

1100/1000

-70-260

White

TF013TR

0.13

1250mm

250

7.4

1100/1000

-70-260

Brown

TF015AJ

0.15

1250mm

300

8.8

1200/1100

-70-260

White

TF018K

0.18

1250mm

380

11.2

1800/1700

-70-260

Brown

TF025AJ

0.23

1250mm

500

14.7

2100/1800

-70-260

Brown

TF025W

0.23

3000mm

500

14.7

2100/1800

-70-260

White

TF025BJ

0.25

3000mm

500.00

14.7

2100/1800

-70-260

Black

TF030AJ

0.3

3000mm

560

16.5

2800/2400

-70-260

White

TF030AK

0.3

3000mm

560

16.5

2800/2400

-70-260

Brown

TF035AJ

0.35

3000mm

640

18.9

2600/2300

-70-260

Brown

TF035BJ

0.35

2600mm

640

18.9

2600/2300

-70-260

Black

TF036AJ

0.36

2600mm

650.0

19.2

2600/2300

-70-260

White

TF036AK

0.36

2600mm

650.0

19.2

2600/2300

-70-260

Brown

TF040BJ

0.4

3000mm

720

21.2

3000/2500

-70-260

Black

TF050AK

0.5

3000mm

750

22.1

3600/3000

-70-260

Yellow

TF055AJ

0.55

3000mm

840

24.8

4400/4000

-70-260

White

TF065AJ

0.65

3000mm

1050

31

5000/4800

-70-260

Brown

TF080AJ

0.8

3000mm

1200

35.4

5000/4800

-70-260

White

TF090AJ

0.9

3000mm

1550

45.7

6000/5000

-70-260

Brown

TF090BJ

0.9

3000mm

1600

47.2

6000/5000

-70-260

Black
