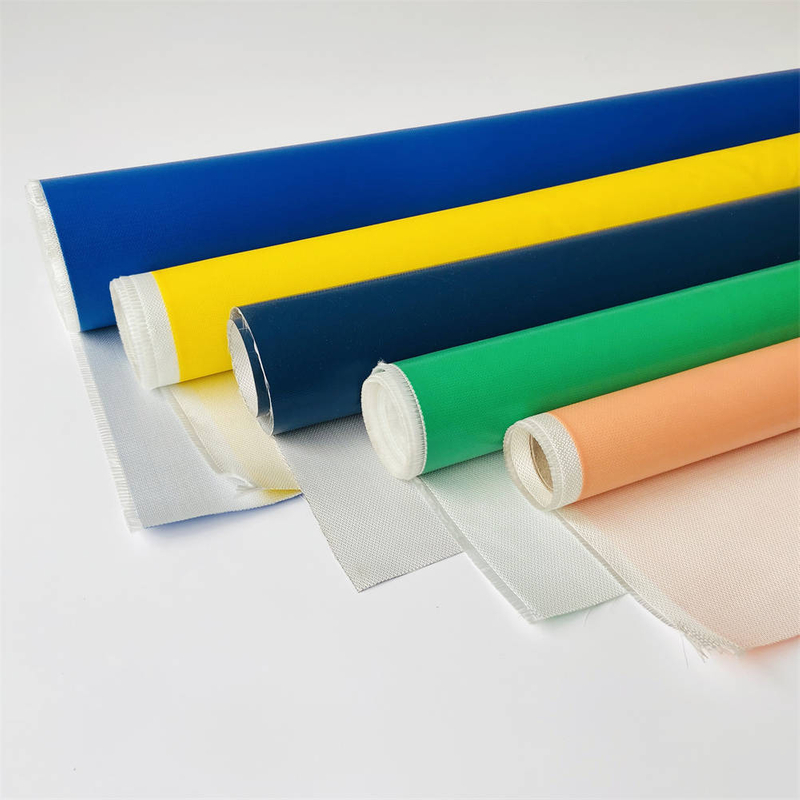

Silicone coated fiberglass cloth is made of glass fiber cloth as base cloth and produced by silicone coating. It has many characteristics include abrasion resistance, resistance to chemicals, water repellence and a high temperature resistance. Silicone coated fabric is a new composite material product with high performance and multiple applications.
| Surface Treatment | Liquid Silicone |
| Coating Side | Single/Double |
| Coating Content | 20-300g |
| Color | Multi colors are available |
| Thickness | 0.2-3mm |
| Weight | 200gsm - 3000gsm or 6oz / yd² - 88oz / yd² |
| Width | 0.8m - 2m or customized |
| Temperature Standing | 550ºC(1022ºF) |
| Length per Roll | Customized |
| Base Cloth | Fiberglass cloth, texurized fiberglass cloth, high silica cloth, steel wire reinforced Texturized fiberglass cloth, one side aluminum foil laminated fiberglass cloth. |
Product Properties
1. Strong resistance to flammability
2. High chemical stability
3. Excellent abrasion resistance
4. Good properties of flexibility
5. High durability
6. Water and oil proof etc...
Applications
Welding blanket, fire protecting curtain, expansion joints, Non-metallic compensator, insulation jacket, fire proof mat, anti-corrosion sector, flange spray shields, high-temperature gaskets and seals etc...
Related Products
Product No. | Yarn Type | Coating | Thickness | Weight |
mm | g/㎡ | oz / yd² |
SRE020701 | E-Glass | 1 side | 0.2 | 280 | 8.3 |
SRE025801 | E-Glass | 1 side | 0.25 | 335 | 9.9 |
SRE035801 | E-Glass | 1 side | 0.35 | 480 | 14.2 |
SRE040801 | E-Glass | 1 side | 0.4 | 510 | 15.0 |
SRE0601501 | E-Glass | 1 side | 0.6 | 810 | 23.9 |
SRE0801501 | E-Glass | 1 side | 0.8 | 990 | 29.2 |
SRE1301801 | E-Glass | 1 side | 1.1 | 1450 | 42.8 |
SRE1501801 | E-Glass | 1 side | 1.5 | 1780 | 52.5 |
SRE0201302 | E-Glass | 2 sides | 0.2 | 340 | 10.0 |
SRE0251302 | E-Glass | 2 sides | 0.25 | 385 | 11.4 |
SRE0351502 | E-Glass | 2 sides | 0.35 | 550 | 16.2 |
SRE0401502 | E-Glass | 2 sides | 0.4 | 580 | 17.1 |
SRE0602402 | E-Glass | 2 sides | 0.6 | 900 | 26.5 |
SRE1102602 | E-Glass | 2 sides | 0.8 | 1100 | 32.4 |
SRE1303002 | E-Glass | 2 sides | 1.1 | 1600 | 47.2 |
SRS0703002 | High Silica | 2 sides | 0.7 | 910 | 26.8 |
SRS1003002 | High Silica | 2 sides | 1 | 1180 | 34.8 |
SRS1103002 | High Silica | 2 sides | 1.25 | 1400 | 41.3 |
